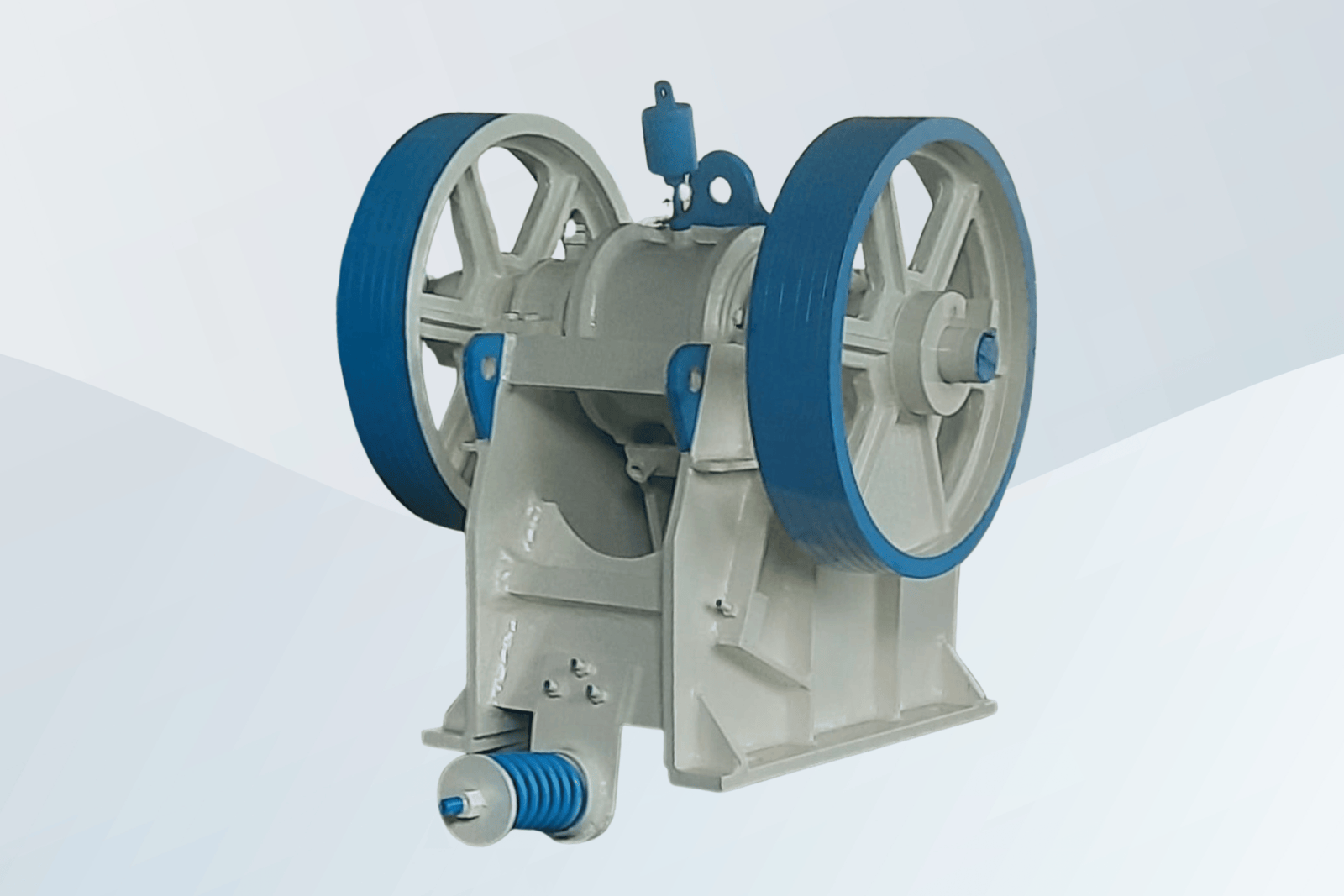

The Single Toggle Grease Type Jaw Crusher is a heavy-duty primary crushing machine designed for crushing hard stones, minerals, ores, and aggregates. It operates on an advanced single toggle mechanism that ensures high crushing efficiency with smooth and reliable performance.
This jaw crusher is equipped with a grease lubrication system that provides proper lubrication to bearings and moving parts, resulting in reduced wear, lower maintenance cost, and longer service life. The grease system also protects the machine from dust and moisture, making it ideal for Indian mining and construction conditions.
| Crusher Type | Single TOGGLE Grease Type Jaw Crusher |
|---|---|
| Application | Primary Crushing |
| Feed Size | Up to 900 mm |
| Output Size | 20 mm to 150 mm (Adjustable) |
| Capacity | 20 TPH to 200 TPH |
| Jaw Plates | High Manganese Steel |
| Lubrication Type | Grease Lubrication System |
| Power Requirement | 15 HP to 100 HP |
| Body Construction | Heavy-Duty Fabricated Steel |
| Suitable Material | Stone, Granite, Basalt, Minerals, Ores |

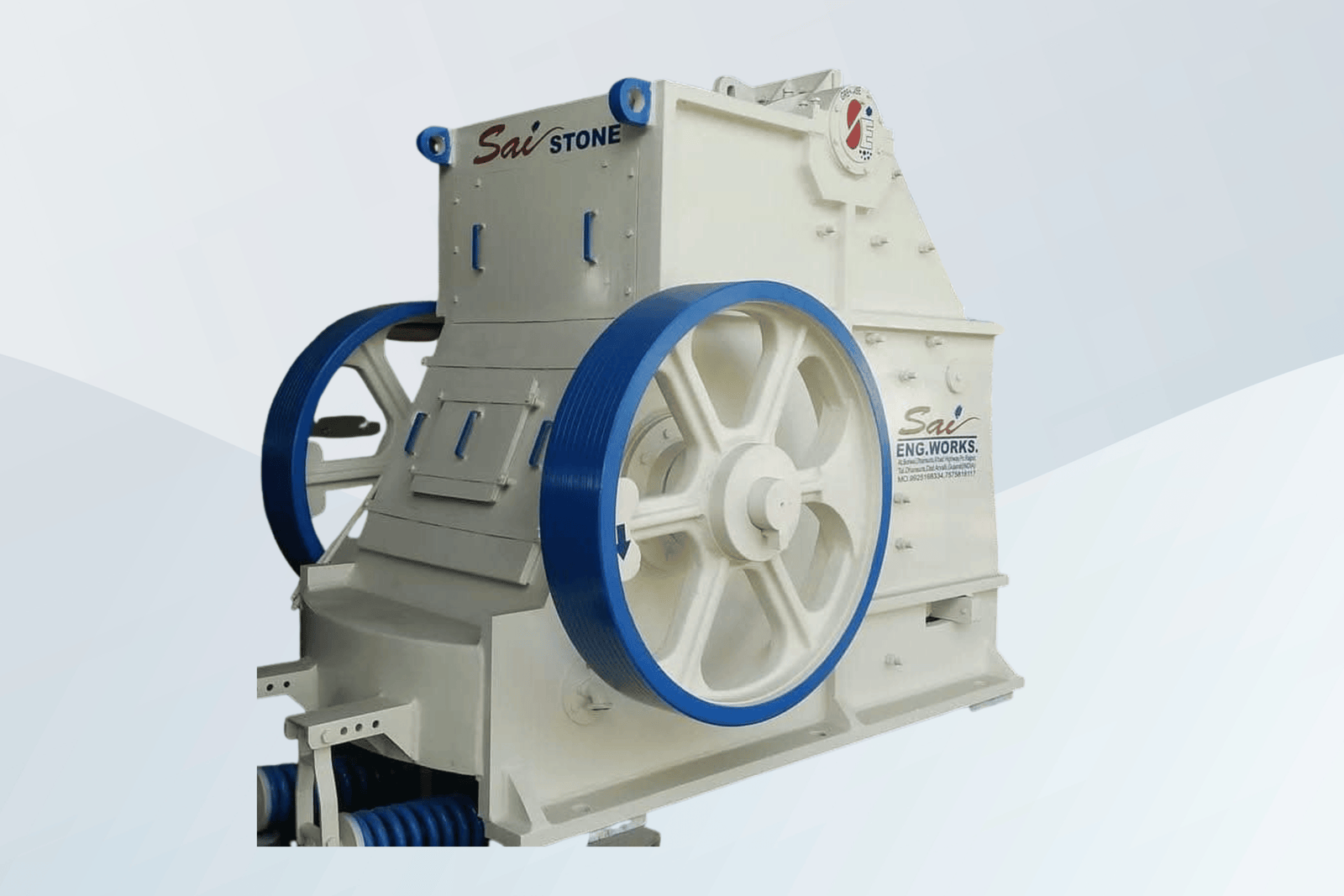

The Oil Type Double Toggle Jaw Crusher is a heavy-duty crushing machine designed for continuous and high-capacity primary crushing applications. It works on a double toggle mechanism, which provides powerful crushing action and ensures higher reduction ratio even for the hardest materials.
This jaw crusher is equipped with an oil lubrication system that ensures smooth and efficient operation of all moving components. The oil circulation system minimizes friction, reduces wear and tear, and enhances the overall lifespan of the machine. It is especially suitable for heavy mining and large-scale stone crushing plants.
| Crusher Type | Oil Type Double TOGGLE Jaw Crusher |
|---|---|
| Application | Primary Crushing (Heavy Duty) |
| Feed Size | Up to 1000 mm |
| Output Size | 25 mm to 150 mm (Adjustable) |
| Capacity | 30 TPH to 300 TPH |
| Jaw Plates | High Manganese Steel (Mn Steel) |
| Lubrication Type | Centralized Oil Lubrication System |
| Power Requirement | 30 HP to 150 HP |
| Body Construction | Heavy-Duty Welded & Fabricated Steel |
| Suitable Material | Granite, Basalt, Quartz, Hard Rock, Minerals |
